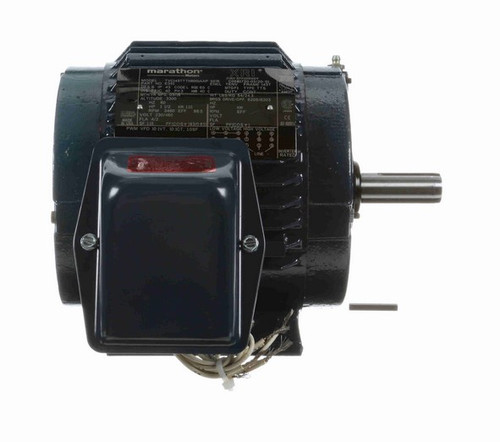

E351 Marathon 1 1/2 hp 230/460V 3600 RPM 3-Phase 143T Frame TENV (rigid base) Motor

E351 Marathon 1 1/2 hp 230/460V 3600 RPM 3-Phase 143T Frame TENV (rigid base) Motor

The E351 Marathon motor is a general-purpose, three-phase industrial motor designed for applications requiring reliable performance and durability. It is suitable for replacing similar 1 1/2 hp motors in various machinery and equipment setups.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 4.0/2.0 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA Cast Iron 143T
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is constructed with Class B insulation and designed without thermal overload protection. Wiring diagrams are provided on the motor nameplate for ease of connection.

Warranty

1 Year Manufacturer Warranty
