- 40 HP 3600 RPM, 42.0 amps, 575V 60 Hz. 3 Phase.

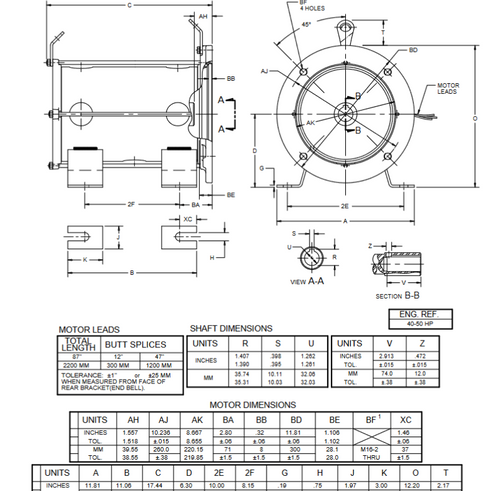

- NEMA 160LCS Zinc Plated Steel Frame, 32 mm LCS shaft
- 1.0 Service Factor, Class F insulation
- Reversible Rotation, 112" leads
- Horizontal Foot Mount, Single Ball Bearing Design to fit most Allweiler and IMO pumps
Motor designed for replacing elevator motors on low rise buildings with Z-flanged motors from Allweiler Pumps (SUB 140, 210, 280) and IMO Pumps (3SIC-187, 3SIC-200, 3SIC-218, 3SIC-250, 4SIC-275). Also used on L32 Flanged motors from Allwieler (SUA 140, 210, 280, 440) 1 Year Manufacture Warranty. J227
