EC0332B Nidec 1/3 hp 3600 RPM 115/208-230V 56C Frame (Rigid Base) ODP 1-Phase Electric Motor
EC0332B Nidec 1/3 hp 3600 RPM 115/208-230V 56C Frame (Rigid Base) ODP 1-Phase Electric Motor
EC0332B Nidec 1/3 hp 3600 RPM 115/208-230V 56C Frame (Rigid Base) ODP 1-Phase Electric Motor
EC0332B Nidec 1/3 hp 3600 RPM 115/208-230V 56C Frame (Rigid Base) ODP 1-Phase Electric Motor

Nidec

EC0332B Nidec 1/3 hp 3600 RPM 115/208-230V 56C Frame (Rigid Base) ODP 1-Phase Electric Motor

(No reviews) Write a Review
$242.65
$216.19
SKU EC0332B
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/3 HP
RPM 3600
Phase Single Phase
Frame 56C
Enclosure ODP
Hertz 50/60 Hz
Amperage 3.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/3 hp 3600 RPM, 6.2/2.9-3.1 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
  • NEMA 56C Frame, Keyed Shaft 5/8" Diameter x 1 7/8" Long
  • Service Factor: 1.15, Overload protection = Auto
  • Base Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

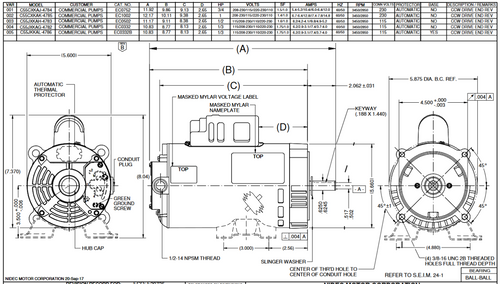

Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. C055KAL4786014J

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/3 HP
RPM 3600
Phase Single Phase
Frame 56C
Enclosure ODP
Hertz 50/60 Hz
Amperage 3.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
