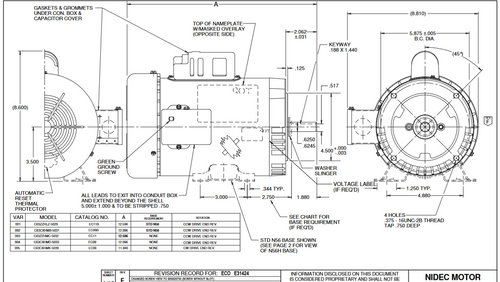

EC04 Nidec 1/2 hp 1800 RPM 115/208-230V 56C Frame (No Base) TEFC 1-Phase Electric Motor

SKU:
EC04
Weight:
30.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $367.00
Now: $328.00
Adding to cart… The item has been added
  • 1/2 hp 1800 RPM, 8.4/4.1-4.2 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
  • NEMA 56C frame Keyed Shaft 5/8" Diameter x 1 7/8" Long
  • Service Factor: 1.15, Overload protection = Auto
  • Face Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

Commercial C-Face pump motor can be used for many applications.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C063HNC5052014J
