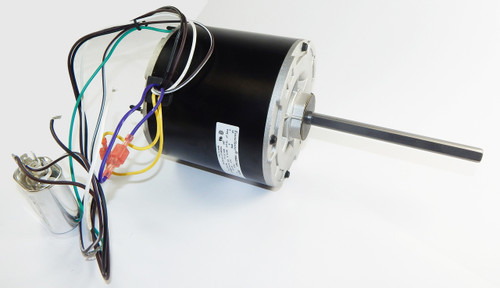

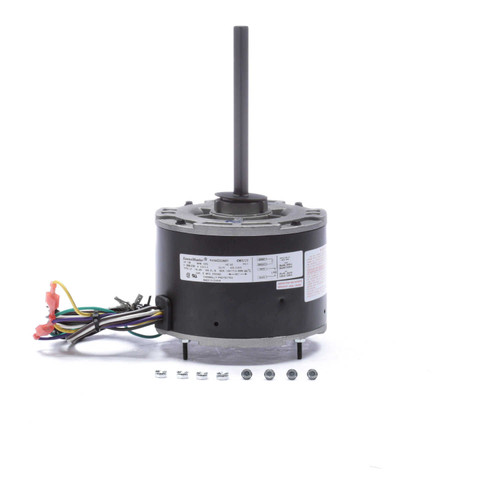

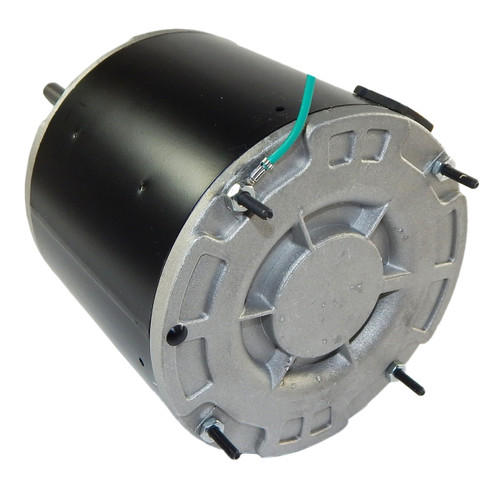

EM3727F | 1/6 hp 1075 RPM 48 Frame 208-230V 5 5/8" Diameter Condenser Fan Motor

EM3727F | 1/6 hp 1075 RPM 48 Frame 208-230V 5 5/8" Diameter Condenser Fan Motor

The EM3727F is a direct replacement condenser fan motor designed for various A/C units, including Economaster models. It is ideal for residential HVAC applications requiring reliable, continuous-duty operation.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 1.1 amps
• Enclosure: Totally Enclosed
• Frame / Diameter: 48 Frame / 5 5/8" Diameter
• Shaft Dimensions: 1/2" x 6"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a 1-speed design with a service factor of 1.0 and Class F insulation, suitable for ambient temperatures up to 70°C. It requires a 5 MFD 370V capacitor (not included) and uses 2-prong capacitor connections. The motor includes 36" wire leads and supports mounting with the shaft oriented up or down. Mounting options include belly band or stud mount, with thru bolts that can be removed and reversed for top mounting. Automatic overload protection is built-in for safe, continuous operation.

Cross Reference

• many different brand A/C units

Warranty

1 Year Manufacturer Warranty
