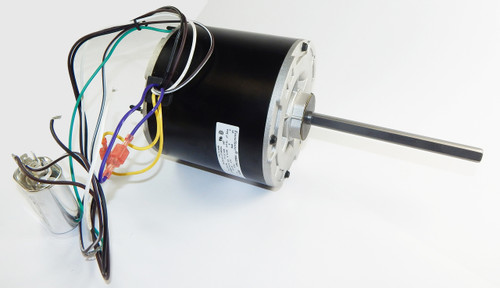

EM3731F | 3/4 hp 1075 RPM 48 Frame 208-230V 5 5/8" Diameter Condenser Fan Motor

EM3731F | 3/4 hp 1075 RPM 48 Frame 208-230V 5 5/8" Diameter Condenser Fan Motor

The EM3731F is a high-quality replacement condenser fan motor designed for various A/C units, including Economaster models. It delivers reliable performance in residential HVAC applications and serves as a direct replacement for many popular air conditioner motors.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 5.3 amps
• Enclosure: Totally Enclosed
• Frame / Diameter: 48 Frame / 5 5/8" Diameter
• Shaft Dimensions: 1/2" x 6"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a motor body length of 4 13/16" and includes 36" wire leads for easy connection. It requires a 10 MFD 370V capacitor (not included) and supports both belly band or stud mounting with automatic overload protection. The shaft can be mounted up or down, and the motor thru bolts are removable and reversible to accommodate top mounting. Designed for continuous duty in ambient temperatures up to 70°C, it includes Class F insulation and allows for easy rotation changes.

Cross Reference

• many different brand A/C units

Warranty

1 Year Manufacturer Warranty
