EP0052 TECO Westinghouse 5 hp 3600 RPM 184T Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

EP0052 TECO Westinghouse 5 hp 3600 RPM 184T Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

SKU:
EP0052
Weight:
145.00 LBS
Width:
18.00 (in)
Height:
13.00 (in)
Depth:
16.00 (in)
Shipping:
Calculated at Checkout
Voltage:
230/460V
Horsepower:
5 HP
RPM:
3600
Phase:
Three Phase
Frame:
184T
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
5.72 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Duty:
Severe Duty
$592.50
Adding to cart… The item has been added

EP0052 TECO Westinghouse 5 hp 3600 RPM 184T Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

The EP0052 is a premium NEMA electric motor designed for severe duty industrial applications such as crushers, compressors, mixers, and conveyors. It is a reliable replacement motor offering high performance with a cast iron frame and TEFC design for enhanced durability.

Key Specifications

  • Horsepower: 5 hp
  • RPM: 3600
  • Voltage: 230/460 V
  • Amperage: 11.4/5.72 A
  • Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54

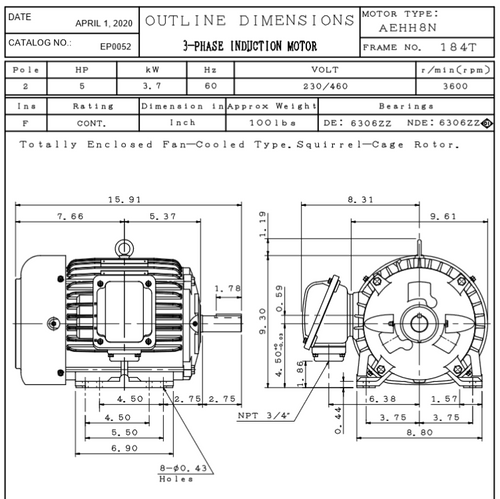

  • Frame / Diameter: NEMA 182/184T Frame, 2 3/4 x 1 1/8" Diameter Keyed Shaft
  • Rotation: Reversible
  • Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and is suitable for inverter use in accordance with NEMA MG-1 Part 31.4.4.2 standards. It supports a wide inverter duty speed range of 20:1 for variable torque and 10:1 for constant torque applications, ensuring versatility in speed control. The motor is constructed with Class F insulation and does not include thermal overload protection.

Warranty

1 Year Manufacturer Warranty
