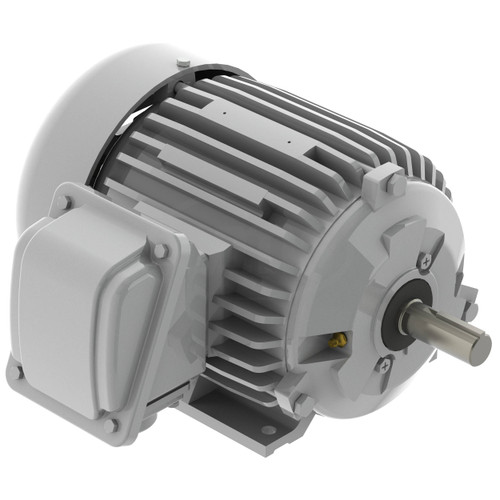

EP0056C TECO Westinghouse 5 hp 1200 RPM 215TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor
EP0056C TECO Westinghouse 5 hp 1200 RPM 215TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor
EP0056C TECO Westinghouse 5 hp 1200 RPM 215TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor
EP0056C TECO Westinghouse 5 hp 1200 RPM 215TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

TECO WESTINGHOUSE

EP0056C TECO Westinghouse 5 hp 1200 RPM 215TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

(No reviews) Write a Review
$1,083.60
SKU EP0056C
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 5 HP
RPM 1200
Phase Three Phase
Frame 215TC
Enclosure TEFC
Hertz 60 Hz
Amperage 6.24 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 5 hp 1200 RPM, 12.48/6.24 amps 230/460 Volts 60Hz. Three Phase

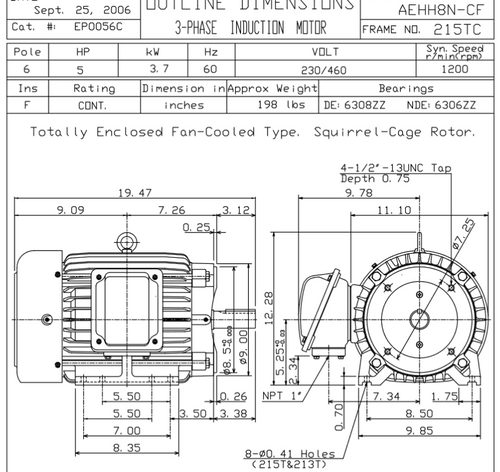

  • NEMA 215TC Frame, 3 3/8 x 1 3/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Crushers, Compressors, Mixers, Conveyors, Any Severe Duty Application

Specifications
Voltage 230/460V
Horsepower 5 HP
RPM 1200
Phase Three Phase
Frame 215TC
Enclosure TEFC
Hertz 60 Hz
Amperage 6.24 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
!
