EP0102C TECO Westinghouse 10 hp 3600 RPM 215TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

EP0102C TECO Westinghouse 10 hp 3600 RPM 215TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

This TECO Westinghouse 10 hp electric motor is designed for severe duty industrial applications such as crushers, compressors, mixers, and conveyors. It is a reliable replacement motor built to meet demanding operational requirements with high efficiency and durability.

Key Specifications

• Horsepower: 10 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 23.0/11.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54

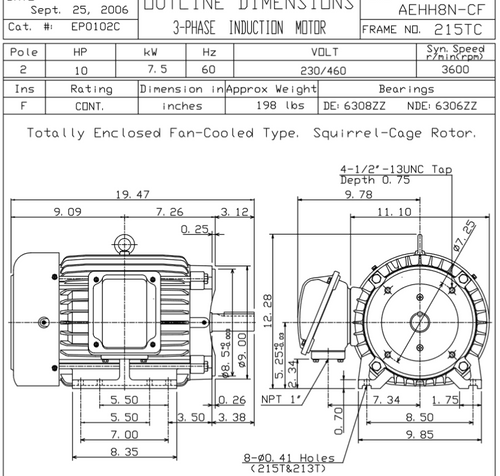

• Frame / Diameter: NEMA 215TC Frame, 3 3/8 x 1 3/8" Diameter
• Shaft Dimensions: Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a rugged cast iron frame and rigid base, this motor is suitable for inverter duty with a speed range of 20:1 for variable torque and 10:1 for constant torque, complying with NEMA MG-1 Part 31.4.4.2. It features Class F insulation and is designed for three-phase power supply. The motor is reversible and includes ball bearings for enhanced durability in severe duty environments. Thermal overload protection is not included.

Warranty

1 Year Manufacturer Warranty
