EU03 Nidec 1/2 hp 3600 RPM 115/208-230V 56J Frame (Rem Base) TEFC 1-Phase Electric Motor

EU03 Nidec 1/2 hp 3600 RPM 115/208-230V 56J Frame (Rem Base) TEFC 1-Phase Electric Motor

This Nidec EU03 electric motor is a versatile 1/2 horsepower, single-phase motor designed for commercial and industrial applications. It serves as a reliable replacement for various C-face pump motors and other equipment requiring a totally enclosed fan-cooled (TEFC) motor.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 7.8/4.1-3.9 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

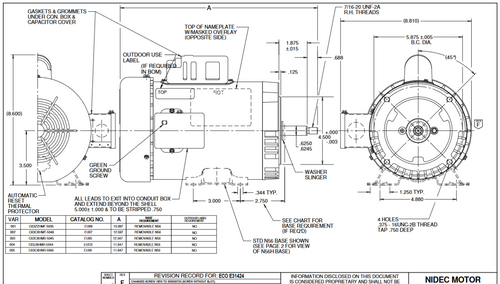

• Frame / Diameter: NEMA 56J Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Long plus threaded tip
• Rotation: Clockwise (CW) lead end
• Bearings: Ball Bearings

Product Features & Fitment

This capacitor start motor operates at 50/60 Hz with a service factor of 1.15 and built-in automatic overload protection. It features a face mount design compatible with commercial C-face pump applications. Wiring diagrams are conveniently located on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
