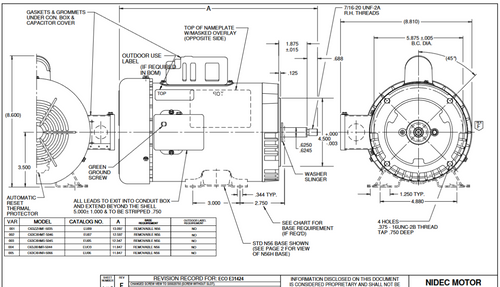

EU04 Nidec 1/2 hp 1800 RPM 115/208-230V 56J Frame (Rem Base) TEFC 1-Phase Electric Motor

SKU:
EU04
Weight:
35.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $489.00
Now: $437.00
  • 1/2 hp 1800 RPM, 8.4/4.1-4.3 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
  • NEMA 56J Frame, Shaft 5/8" Diameter x 1 7/8" Long plus threaded tip
  • Service Factor: 1.15, Overload protection = Auto
  • Face Mount, Ball Bearings, Class B Insulation, CW lead end
  • 1 Year Manufacture Warranty

Commercial C-Face pump motor can be used for many applications.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C063HNJ5058R13J
