EU06 Nidec 3/4 hp 1800 RPM 115/208-230V 56J Frame (Rem Base) TEFC 1-Phase Electric Motor

SKU:
EU06
Weight:
30.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $572.00
Now: $510.70
Adding to cart… The item has been added
  • 3/4 hp 1800 RPM, 9.9/5.1-4.9 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor

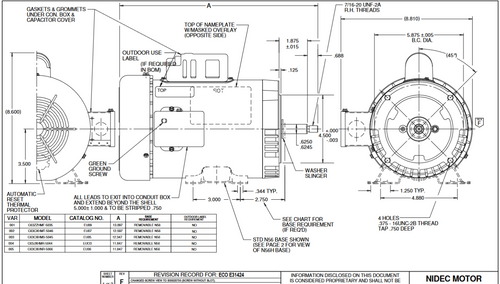

  • NEMA 56J Frame, Shaft 5/8" Diameter x 1 7/8" Long plus threaded tip
  • Service Factor: 1.15, Overload protection = Auto
  • Face or Removable Base Mount, Ball Bearings, Class B Insulation, CW lead end
  • 1 Year Manufacture Warranty

Commercial C-Face pump motor can be used for many applications.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T063CNJ2372013J
