2 hp 3600 RPM, 9.6-9.0 amps 208-230 Volts 50/60 Hz Capacitor Start Motor
NEMA 56J Frame, Shaft 5/8" Diameter x 1 7/8" Long plus threaded tip
Service Factor: 1.15, Overload protection = Auto
Face or Removable Base Mount, Ball Bearings, Class B Insulation, CW lead end
1 Year Manufacture Warranty
Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T063CPK1454013J

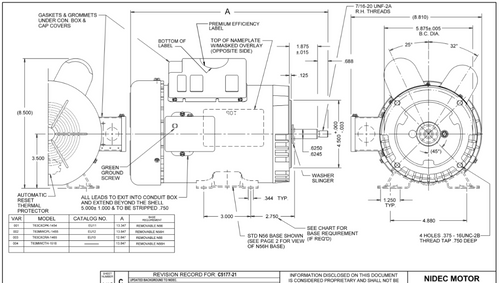

EU11 Nidec 2 hp 3600 RPM 208-230V 56J Frame (Rem Base) TEFC 1-Phase Electric Motor
- SKU:
- EU11
- Weight:
- 42.00 LBS
- Shipping:
- Calculated at Checkout
- ON SALE:
- LIMITED TIME DISCOUNT
Nidec
