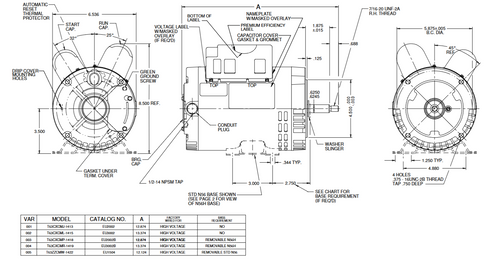

EU3002 Nidec 3 hp 3600 RPM 208-230V 56J Frame (No Base) ODP 1-Phase Electric Motor

SKU:: EU3002
UPC:
Weight:: 40.00 LBS
Width:: 16.00 (in)
Height:: 11.00 (in)
Depth:: 9.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 208/230V
Horsepower:: 3 HP
RPM:: 3600
Phase:: Single Phase
Frame:: 56J
Enclosure:: ODP
Hertz:: 50/60 Hz
Amperage:: 12.8 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class B
Mounting:: C-Face

Current Stock:

Was: $796.95

Now: $711.39

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

EU3002 Nidec 3 hp 3600 RPM 208-230V 56J Frame (No Base) ODP 1-Phase Electric Motor

The EU3002 is a reliable 3 horsepower, 3600 RPM single-phase electric motor designed for commercial and industrial applications. It serves as a direct replacement for various C-Face pump motors requiring a NEMA 56J frame and open drip proof enclosure.

Key Specifications

Horsepower: 3 hp
RPM: 3600
Voltage: 208-230 V
Amperage: 14.0-12.8 A
Enclosure: Open Drip Proof (ODP)
Frame / Diameter: NEMA 56J
Shaft Dimensions: 5/8" diameter x 1 7/8" length with threaded tip
Rotation: Counterclockwise (CCW) drive end
Bearings: Ball Bearings

Product Features & Fitment

This motor features capacitor start and capacitor run design for efficient operation across 50/60 Hz power supplies. It includes a face mount configuration and class B insulation for durability. The motor does not include a base and is equipped with an auto overload protection system. Wiring diagrams are provided on the motor nameplate to assist with installation.
