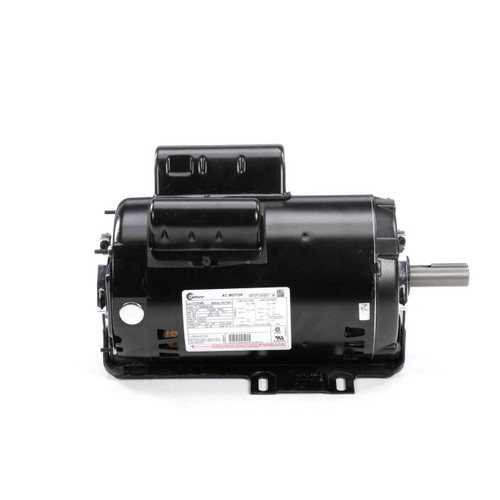

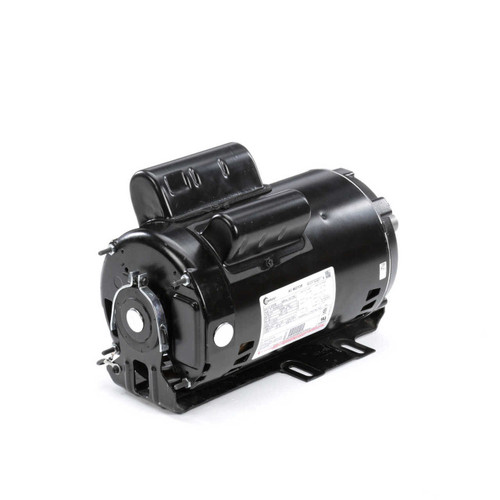

V1204B Century Evaporative Cooler Motor 2 hp 1725 RPM 56Z Frame 115/230V Century # V1204B

V1204B Century Evaporative Cooler Motor 2 hp 1725 RPM 56Z Frame 115/230V

The V1204B is a 2 horsepower evaporative cooler motor designed to replace Century # V1204B and compatible with Dayton # 4UE50, 4VZ34 models. It is ideal for evaporative coolers, pumps, and other equipment operating in high-moisture environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 1725
• Voltage: 115/230V
• Amperage: 18.0/9.0 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 56Z
• Shaft Dimensions: 7/8" x 2 1/4"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor-start and capacitor-run design with a single speed operation. It includes a cradle base for secure mounting and is engineered for reliable performance in environments with high moisture levels. The reversible rotation allows for versatile installation options.

Warranty

1 Year Manufacturer Warranty
