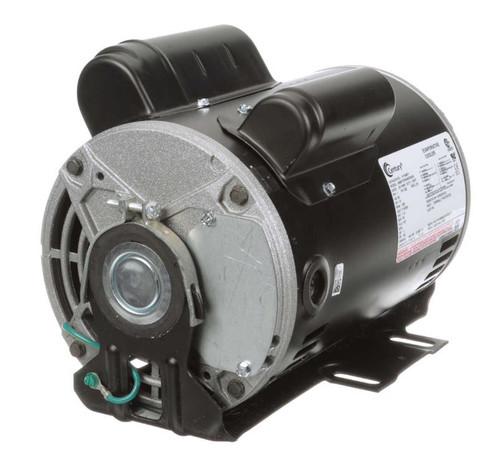

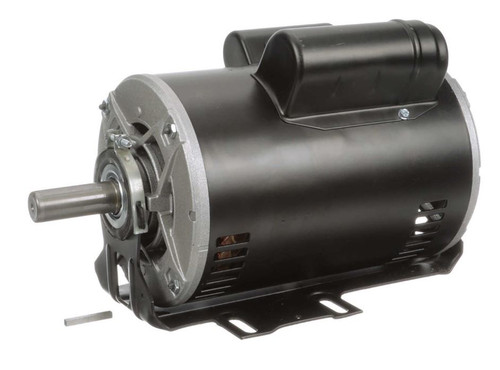

V1154BV1 Century Evaporative Cooler Motor 1.5 hp 1725 RPM 56Z Frame 115/230V

V1154BV1 Century Evaporative Cooler Motor 1.5 hp 1725 RPM 56Z Frame 115/230V

This 1.5 horsepower motor is designed for evaporative coolers, pumps, and other equipment operating in high-moisture environments. It replaces model V1154B and is compatible with Dayton part numbers 4UE51, 4VZ35, and references 7-193958-03, 193958.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 115/230V
• Amperage: 14.0/7.0 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 56Z Frame
• Shaft Dimensions: 7/8" x 2 1/4" keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor-start and capacitor-run design for reliable operation. It includes a cradle base for secure mounting and is built to withstand high-moisture conditions typical of evaporative cooler applications.

Cross Reference

• V1154B

Warranty

1 Year Manufacturer Warranty
