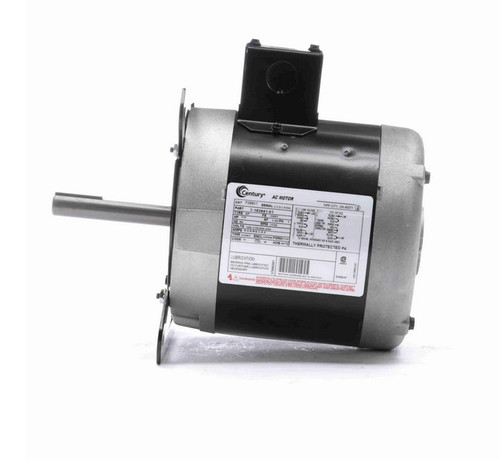

F268V1 Century 1/2 hp (1 speed) 100-115/200-230V 1800 RPM Open 56Y Frame Pizza Oven Motor

F268V1 Century 1/2 hp (1 speed) 100-115/200-230V 1800 RPM Open 56Y Frame Pizza Oven Motor

This Century F268V1 motor is a reliable replacement designed for pizza and convection fan ovens. It operates at a single speed with versatile voltage compatibility, ensuring efficient performance in commercial cooking equipment.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 100-115/200-230V, 60 Hz
• Amperage: 6.2/3.1 amps
• Enclosure: Open Frame
• Frame / Diameter: NEMA 56Y Frame
• Shaft Dimensions: 3 1/2" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base for stable mounting and includes automatic thermal protection to prevent overheating. It is designed for split-phase operation with a service factor of 1.0 and Class B insulation, making it suitable for continuous use in commercial oven environments.

Warranty

1 Year Manufacturer Warranty
