Fasco K611 Motor | Fasco C-Frame Vent Fan Motor .63 amps 3000 RPM 120V (CCW rotation)

Fasco K611 Motor | Fasco C-Frame Vent Fan Motor

The Fasco K611 is a C-frame vent fan motor designed for continuous duty applications such as bath fans, hood fans, and humidifier/dehumidifiers. It replaces Broan 162 and Century C01611 motors, providing reliable performance with counterclockwise (CCW) rotation when facing the shaft.

Key Specifications

• Amperage: 0.63 amps
• RPM: 3000
• Voltage: 120V
• Frame / Diameter: C-Frame, Iron Stack Size 0.75"
• Shaft Dimensions: 0.25" diameter x 2.45" length
• Rotation: CCW (counterclockwise)

Product Features & Fitment

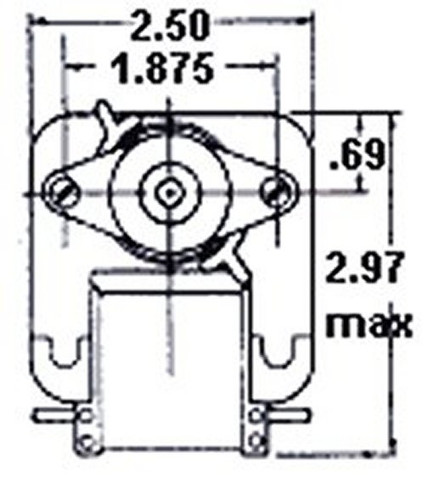

This motor features a mounting configuration with two studs spaced 1 7/8" on center, compatible with standard skeleton motor mounting patterns. It includes two 6" wire leads for electrical connections. The rotation direction is determined when facing the shaft, ensuring proper installation orientation.

Cross Reference

• Broan 162, Century C01611

Warranty

• Fasco Catalog Page
