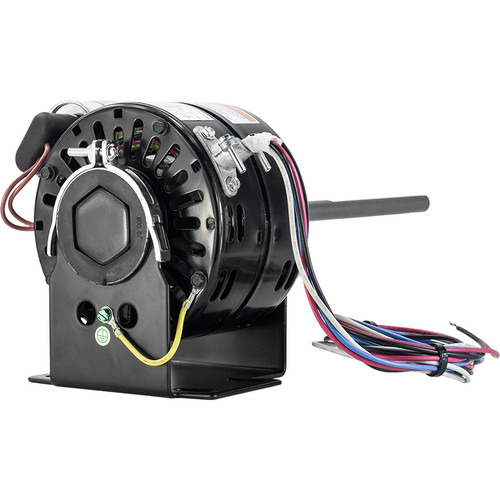

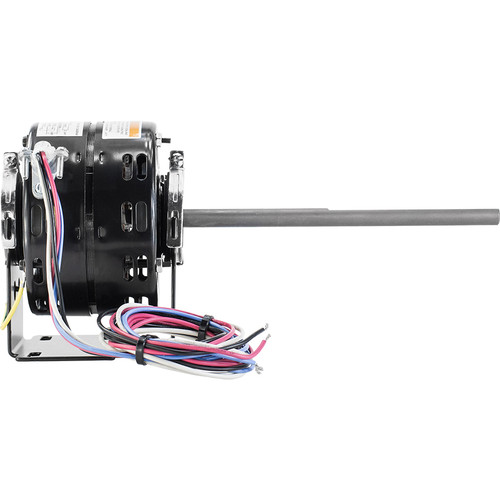

Fasco D1045 Direct OEM Replacement 1/30 hp 1100 RPM 3-Speed 115 Volts

Fasco D1045 Direct OEM Replacement 1/30 hp 1100 RPM 3-Speed 115 Volts

This Fasco D1045 motor is a direct OEM aftermarket replacement designed for heat pumps and furnaces. It offers reliable performance with a 3-speed PSC design and is compatible with multiple OEM part numbers for seamless integration.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 1100
• Voltage: 115 Volts
• Amperage: 1.0 amps
• Frame / Diameter: 5.0" diameter
• Shaft Dimensions: 1/2" x 9"
• Rotation: Clockwise (CW) shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a resilient base mount with a shaft height of 3.5" and a motor case length of 3.25". It includes a capacitor as part of its PSC style design and comes with 47-inch leads for easy wiring. The motor is thermally protected to ensure safe operation and supports three speeds: high, medium, and low. Suggested replacements include IEC 5KCP29BK5875S, 70021692, 7002-1692, K048TSN4125011B, and Fasco D1045 part numbers 7186-0334 and 71860334.

Cross Reference

• FASCO D1045
• Motor Manufactured by PEMS

Warranty

1 Year Manufacturer Warranty
