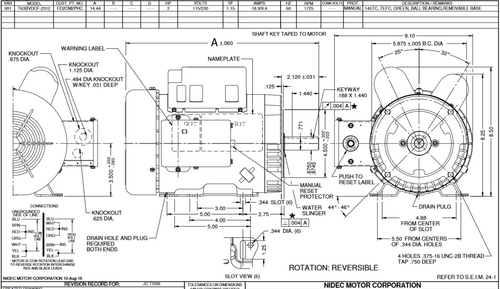

FD2CM2PHC Nidec 2 HP 1800 RPM 115/230V 145TC Frame (Base) TEFC Farm Duty Motor
FD2CM2PHC Nidec 2 HP 1800 RPM 115/230V 145TC Frame (Base) TEFC Farm Duty Motor
FD2CM2PHC Nidec 2 HP 1800 RPM 115/230V 145TC Frame (Base) TEFC Farm Duty Motor
FD2CM2PHC Nidec 2 HP 1800 RPM 115/230V 145TC Frame (Base) TEFC Farm Duty Motor

Nidec

FD2CM2PHC Nidec 2 HP 1800 RPM 115/230V 145TC Frame (Base) TEFC Farm Duty Motor

(No reviews) Write a Review
$463.45
$413.54
SKU FD2CM2PHC
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 2 HP
RPM 1800
Frame 145TC
Enclosure TEFC
Hertz 60 Hz
Amperage 18.9/9.4 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 HP 1800 RPM (1 speed), 18.9/9.4 amps 115/230V Volts 60 Hz Capacitor Start/Run Motor
  • 145TC Frame, Rolled Steel, Keyed Shaft 7/8" diameter x 2" long
  • Service Factor = 1.15, Overload Protection: Manual
  • Rigid Base Mount, Ball Bearings, Class B Insulation, Reversible rotation
  • 1 Year Manufacture Warranty

High Torque Farm Duty Motor for use on augers, compressors, feeders, etc. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled, T063DCF2312015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 2 HP
RPM 1800
Frame 145TC
Enclosure TEFC
Hertz 60 Hz
Amperage 18.9/9.4 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Mounting Rigid Base
!
