FE1058SF Century 1/2 hp 825 RPM, 1-Speed, 208-230V, 70C° Condenser Motor

SKU:: FE1058SF
UPC:
Weight:: 19.00 LBS
Width:: 12.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 208/230V
Horsepower:: 1/2 HP
RPM:: 825
Type:: PSC (Permanent Split Capacitor)
Amperage:: 2.5 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Insulation Class:: Class F

Current Stock:

Was: $325.80

Now: $276.12

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

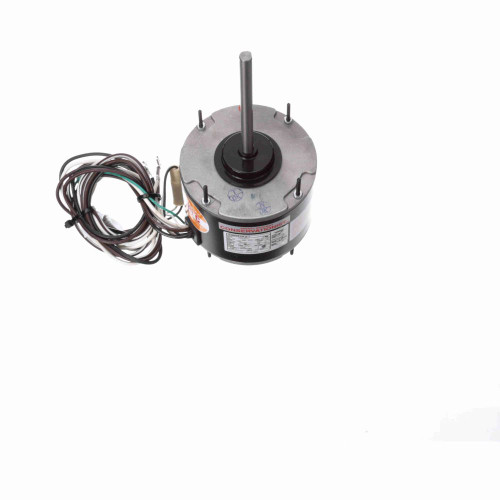

FE1058SF Century 1/2 hp 825 RPM, 1-Speed, 208-230V, 70C° Condenser Motor

The FE1058SF is a durable 1/2 horsepower condenser motor designed for heat pump and refrigeration applications. It serves as a reliable replacement motor featuring a permanent split capacitor design for efficient, continuous operation.

Key Specifications

Horsepower: 1/2 hp
RPM: 825
Voltage: 208-230V
Amperage: 2.5 amps
Enclosure: Totally Enclosed Air Over (TEAO)
Shaft Dimensions: 1/2" diameter x 6.5" length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor includes a reversing plug and requires a 10 MFD 370V capacitor (Part #10DV) for proper operation. It features Class F insulation and is rated for ambient temperatures up to 70°C. The motor is designed for all-angle mounting with extended thru bolts and automatic overload protection. Four-wire configuration includes two power leads and two leads for a 2-prong capacitor connection.
