Century Electric Motor
FE1058SF Century 1/2 hp 825 RPM, 1-Speed, 208-230V, 70C° Condenser Motor
(No reviews)
Write a Review
Write a Review
Century Electric Motor
FE1058SF Century 1/2 hp 825 RPM, 1-Speed, 208-230V, 70C° Condenser Motor
$325.80
$276.12
SKU
FE1058SF
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230V
Horsepower
1/2 HP
RPM
825
Type
PSC (Permanent Split Capacitor)
Amperage
2.5 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class F

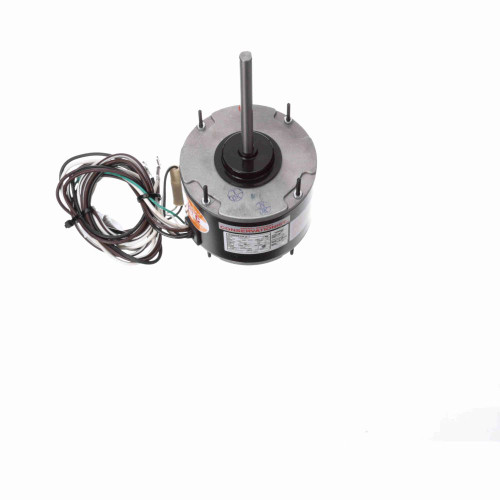

FE1058SF Century 1/2 hp 825 RPM, 1-Speed, 208-230V, 70C° Condenser Motor
The FE1058SF is a durable 1/2 horsepower condenser motor designed for heat pump and refrigeration applications. It serves as a reliable replacement motor featuring a permanent split capacitor design for efficient, continuous operation.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 825
- Voltage: 208-230V
- Amperage: 2.5 amps
- Enclosure: Totally Enclosed Air Over (TEAO)
- Shaft Dimensions: 1/2" diameter x 6.5" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor includes a reversing plug and requires a 10 MFD 370V capacitor (Part #10DV) for proper operation. It features Class F insulation and is rated for ambient temperatures up to 70°C. The motor is designed for all-angle mounting with extended thru bolts and automatic overload protection. Four-wire configuration includes two power leads and two leads for a 2-prong capacitor connection.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230V |
| Horsepower | 1/2 HP |
| RPM | 825 |
| Type | PSC (Permanent Split Capacitor) |
| Amperage | 2.5 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class F |
