FF125E2CS Nidec 125 hp 1800 RPM 460V ODP 405TS (Rigid Base) 3-Phase Fire Pump Motor
FF125E2CS Nidec 125 hp 1800 RPM 460V ODP 405TS (Rigid Base) 3-Phase Fire Pump Motor
FF125E2CS Nidec 125 hp 1800 RPM 460V ODP 405TS (Rigid Base) 3-Phase Fire Pump Motor
FF125E2CS Nidec 125 hp 1800 RPM 460V ODP 405TS (Rigid Base) 3-Phase Fire Pump Motor

Nidec

FF125E2CS Nidec 125 hp 1800 RPM 460V ODP 405TS (Rigid Base) 3-Phase Fire Pump Motor

(No reviews) Write a Review
$11,349.35
$10,133.23
SKU FF125E2CS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 125 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 140 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 125 hp 1800 RPM, 140 amps 460 Volts 60 Hz Three Phase Motor

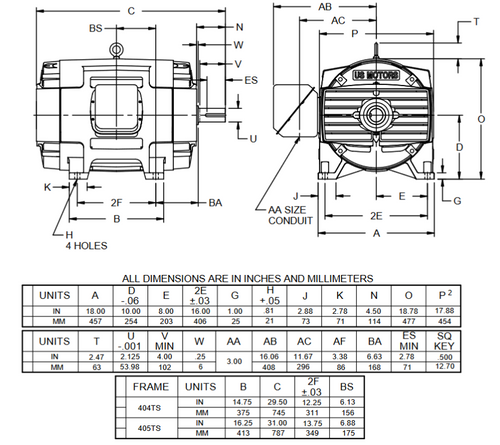

  • NEMA 405TS Cast Iron Frame, Keyed Shaft 2 1/8" Diameter x 4 1/2"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

For fire pump applications per NFPA 20 where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. AD05

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 125 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 140 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
