- 150 hp 3600 RPM, 165 amps 575 Volts 60 Hz Three Phase Motor

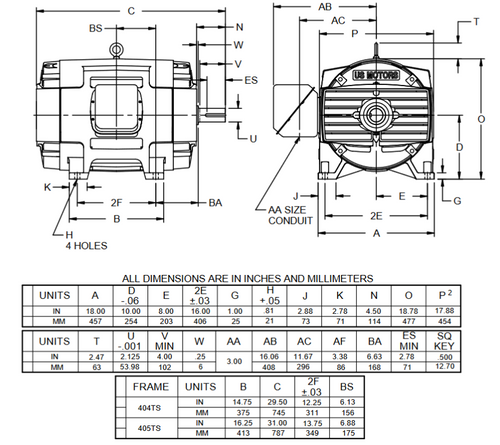

- NEMA 405TS Cast Iron Frame, Keyed Shaft 2 1/8" Diameter x 4 1/2"
- Service Factor: 1.15 Overload protection = None
- C-Face Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
For fire pump applications per NFPA 20 where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. S792
