FF60E2GS Nidec 60 hp 1800 RPM 575V ODP 364TS (Rigid Base) 3-Phase Fire Pump Motor
FF60E2GS Nidec 60 hp 1800 RPM 575V ODP 364TS (Rigid Base) 3-Phase Fire Pump Motor
FF60E2GS Nidec 60 hp 1800 RPM 575V ODP 364TS (Rigid Base) 3-Phase Fire Pump Motor
FF60E2GS Nidec 60 hp 1800 RPM 575V ODP 364TS (Rigid Base) 3-Phase Fire Pump Motor

Nidec

FF60E2GS Nidec 60 hp 1800 RPM 575V ODP 364TS (Rigid Base) 3-Phase Fire Pump Motor

(No reviews) Write a Review
$5,526.90
$4,934.77
SKU FF60E2GS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 60 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 57.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 60 hp 1800 RPM, 57.0 amps 575 Volts 60 Hz Three Phase Motor

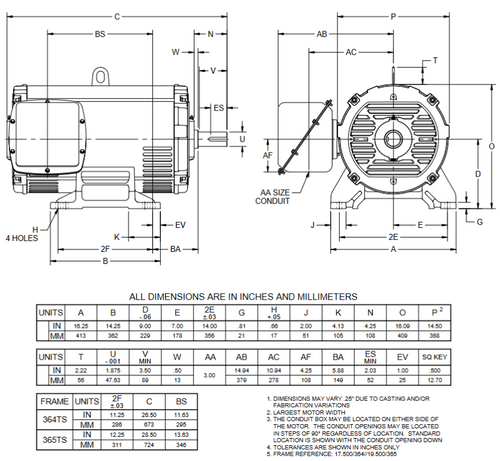

  • NEMA 364TS Cast Iron Frame, Keyed Shaft 1 7/8" Diameter x 4 1/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

For fire pump applications per NFPA 20 where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. HH25

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 60 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 57.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
