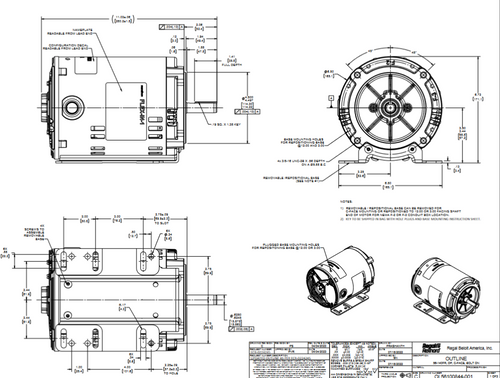

FX01BK001 | 1 HP 3600 RPM 56HC 208-230/460V 3 Phase ODP, FLEX-IN-1 Marathon Electric Motor
The Marathon FLEX-IN-1™ Electric Motor FX01BK001 is a versatile 1 HP, 3600 RPM motor designed to replace numerous discontinued or out-of-stock brand name motors. Ideal for industrial applications requiring a reliable, three-phase power source, it fits standard 56 frame motors with or without C-face mounts.
Key Specifications
- Horsepower: 1 HP
- RPM: 3600
- Voltage: 208-230/460 V
- Amperage: 3.0-2.8/1.4 A
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Frame / Diameter: 56HC Frame with removable mounting base
- Rotation: Inverter Duty - 10:1 CT
- Bearings: Double-sealed ball bearings
Product Features & Fitment
This motor features a patent-pending multi-mount, repositionable bolt-on base and C-Face, allowing rapid reconfiguration of the conduit box compared to traditional general-purpose motors. The fan guard is rotatable in 90° increments to align with the base when repositioned for F-2 or F-3 conduit box locations. The conduit box itself rotates 180° for 360° conduit entry, with 7/8” and 1-1/8” knockouts on all sides.
Additional features include hole plugs in the main frame for repositioning the base to NEMA® F-2 and F-3 conduit box locations, a conduit box cover gasket meeting IP44 or better enclosure rating, and a repositionable combination base compatible with NEMA 56, 56H, 143T, and 145T mounting. Cast-in end frame markings indicate base locations for conduit box positioning, supported by base-to-frame mounting screws for secure repositioning. This motor offers multiple mounting options in one unit for flexible installation.
