FX01BK006 | 1 HP 1200 RPM 56HC 208-230/460V 3 Phase TEFC, FLEX-IN-1 Marathon Electric Motor
The Marathon FLEX-IN-1™ electric motor is a versatile, high-quality replacement motor designed to fit hundreds of discontinued or out-of-stock brand name motors. Ideal for industrial applications requiring a reliable 1 HP, 3-phase motor with flexible mounting options and inverter duty capability.
Key Specifications
- Horsepower: 1 HP
- RPM: 1200
- Voltage: 208-230/460 V
- Amperage: 3.8-3.8/1.9 A
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Frame / Diameter: 56HC Frame with removable mounting base
- Bearings: Double-sealed ball bearings
- Insulation Class: F
- Frequency: 50/60 Hz
- Phase: 3 Phase
- Inverter Duty: 10:1 CT
Product Features & Fitment

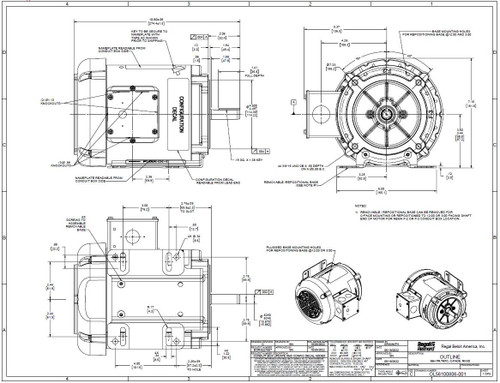

This motor features a patent-pending multi-mount, repositionable bolt-on base and C-Face, allowing rapid reconfiguration of the conduit box and mounting position. The 56HC frame includes a removable base with holes and slots compatible with NEMA 56, 56H, 143T, and 145T mounting standards, and can be repositioned for F-1, F-2, or F-3 conduit box locations.
Additional design innovations include a rotatable fan guard (90° increments) and a 180° rotatable conduit box with 7/8” and 1-1/8” knockouts on all sides, enabling 360° conduit entry. Hole plugs and base-to-frame mounting screws facilitate repositioning, while the conduit box cover gasket ensures an IP44 or better enclosure rating after repositioning. This motor is an excellent low-cost replacement option with flexible mounting and wiring configurations for various industrial applications.
