The FX34BK006 is a versatile 3/4 HP Marathon FLEX-IN-1™ electric motor designed to replace hundreds of discontinued or out-of-stock standard 56 frame motors, with or without C-face mounts. Ideal for industrial applications requiring reliable, inverter-duty rated performance with flexible mounting options.

Key Specifications

• Horsepower: 3/4 HP
• RPM: 1200
• Voltage: 208-230/460 V
• Amperage: 3.1-3.25/1.6 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: 56C Frame with removable mounting base
• Rotation: 3 Phase
• Bearings: Double-sealed ball bearings

Product Features & Fitment

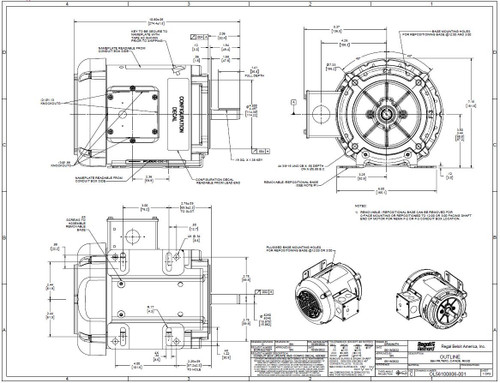

This motor features a patent-pending multi-mount, repositionable bolt-on base and C-face, allowing rapid reconfiguration of the conduit box and mounting positions. The conduit box is rotatable 180° with 7/8” and 1-1/8” knockouts on all sides, and the fan guard rotates in 90° increments for alignment with the base. The repositionable combination base supports NEMA 56, 56H, 143T, and 145T mounting patterns and can be adjusted for NEMA F-1, F-2, or F-3 conduit box locations. A conduit box cover gasket ensures an IP44 or better enclosure rating after repositioning. This design simplifies installation and replacement in a wide range of industrial motor applications.
