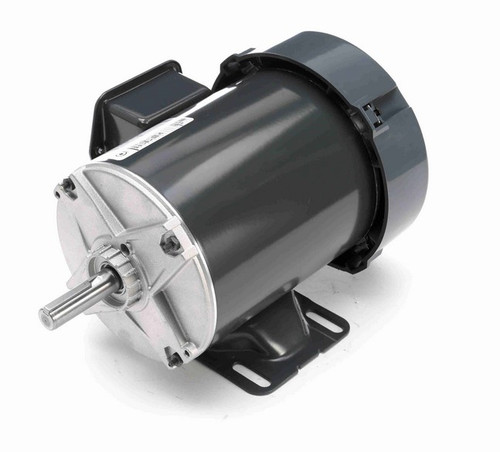

G1340 Marathon 3/4 hp 575V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor

G1340 Marathon 3/4 hp 575V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor

This Marathon general purpose three-phase motor is designed for industrial applications requiring reliable performance and durability. It replaces Leeson model 110178.00 and features a rigid base mount suitable for various equipment setups.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 575 V
• Amperage: 1.3 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56 frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base for secure mounting and includes a keyed shaft to ensure proper coupling with driven equipment. It is equipped with Class B insulation and designed for reversible operation. Wiring diagrams are provided on the motor nameplate to facilitate installation.

Cross Reference

• Leeson 110178.00

Warranty

1 Year Manufacturer Warranty
