G638 Nidec 1/2 hp 1800 RPM 56C Frame (Rigid Base) 90V TEFC DC Permanent Magnet Motor
G638 Nidec 1/2 hp 1800 RPM 56C Frame (Rigid Base) 90V TEFC DC Permanent Magnet Motor
G638 Nidec 1/2 hp 1800 RPM 56C Frame (Rigid Base) 90V TEFC DC Permanent Magnet Motor
G638 Nidec 1/2 hp 1800 RPM 56C Frame (Rigid Base) 90V TEFC DC Permanent Magnet Motor

Nidec

G638 Nidec 1/2 hp 1800 RPM 56C Frame (Rigid Base) 90V TEFC DC Permanent Magnet Motor

(No reviews) Write a Review
$985.55
$879.75
SKU G638
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 90V
Horsepower 1/2 HP
RPM 1800
Frame 56C
Enclosure TEFC
Amperage 5.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 5.0 amps 90 Volts DC
  • NEMA 56C Rolled Steel Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • 20:1 Constant Speed Range
  • Removable Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

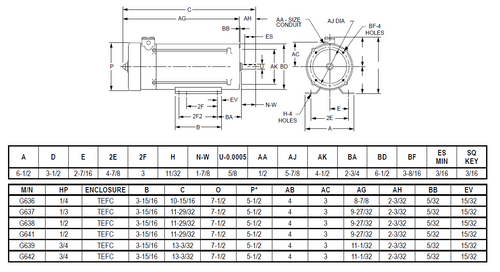

For general on industrial equipment including fans, pumps, and compressors. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. G638

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 90V
Horsepower 1/2 HP
RPM 1800
Frame 56C
Enclosure TEFC
Amperage 5.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Mounting Rigid Base
!
