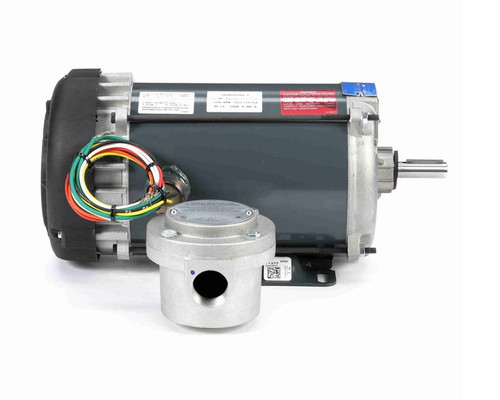

G655 Marathon 1/2 hp 1200 RPM 115/208-230V Explosion Proof 56 Frame EPFC (rigid base) Motor

G655 Marathon 1/2 hp 1200 RPM 115/208-230V Explosion Proof 56 Frame EPFC (rigid base) Motor

The G655 Marathon motor is a 1/2 horsepower, explosion-proof single-phase electric motor designed for hazardous environments. It is suitable for applications requiring reliable, fan-cooled operation with reversible rotation and rigid base mounting.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1200
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 9.6/4.7-4.8 A
• Enclosure: Explosion Proof (EPFC - Explosion-Proof Fan-Cooled)
• Frame / Diameter: NEMA Rolled Steel 56 Frame

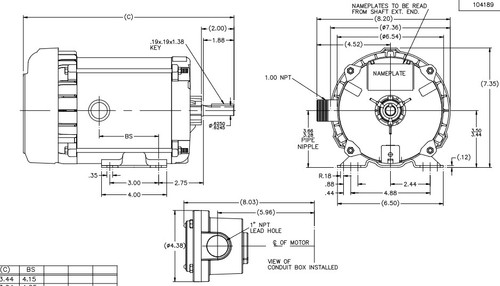

• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and capacitor run design with automatic overload protection and a service factor of 1.0. It includes a rigid base for secure mounting and a keyed shaft for reliable coupling. The wiring diagram is provided on the motor nameplate for easy installation. The motor meets explosion-proof standards for Class I Groups C & D and Class II Groups F & G, T3B environments.

Warranty

1 Year Manufacturer Warranty
