G870 Marathon 1 hp 1800 RPM 115/208-230V Explosion Proof 56C Frame EPFC (no base) Motor

SKU:: G870
UPC:
Weight:: 34.00 LBS
Width:: 9.00 (in)
Height:: 11.00 (in)
Depth:: 17.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/208/230V
Horsepower:: 1 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56C
Enclosure:: EPFC
Hertz:: 60 Hz
Amperage:: 6.7 Amps
Bearings:: Ball Bearings
Service Factor:: 1.0
Insulation Class:: Class B

Current Stock:

Was: $720.59

Now: $627.90

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

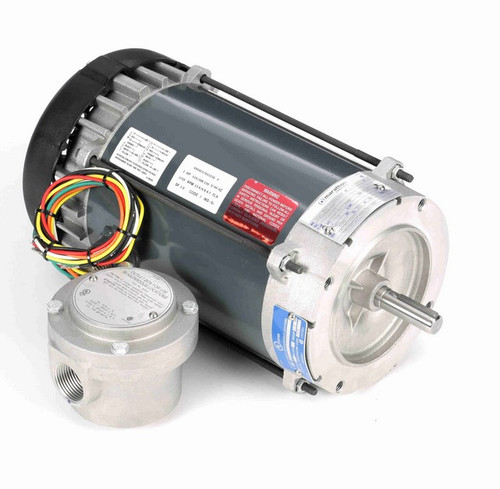

G870 Marathon 1 hp 1800 RPM 115/208-230V Explosion Proof 56C Frame EPFC (no base) Motor

The G870 Marathon motor is a 1 horsepower, explosion-proof single-phase electric motor designed for hazardous environments. It replaces the Leeson 110852.00 model and is ideal for applications requiring reliable, fan-cooled operation with Class I and II hazardous location ratings.

Key Specifications

Horsepower: 1 hp
RPM: 1800
Voltage: 115/208-230 V, 60 Hz
Amperage: 13.4/6.8-6.7 A
Enclosure: Explosion-Proof Fan-Cooled (EPFC)
Frame / Diameter: NEMA Rolled Steel 56C Frame

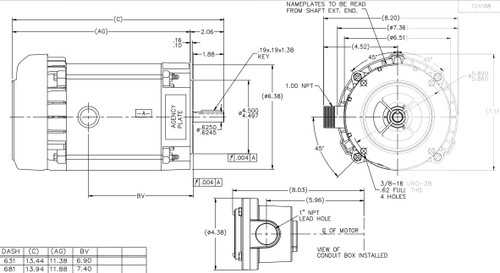

Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and induction run design with a service factor of 1.0 and automatic overload protection. It comes without a base and includes a wiring diagram on the motor nameplate for easy installation. The motor is rated for Class I Groups C & D and Class II Groups F & G hazardous locations with a T3B temperature rating.
