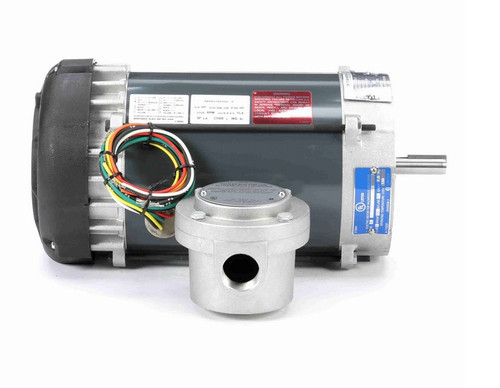

G857 Marathon 3/4 hp 1800 RPM 115/208-230V Explosion Proof 56C Frame EPFC (no base) Motor

G857 Marathon 3/4 hp 1800 RPM 115/208-230V Explosion Proof 56C Frame EPFC (no base) Motor

This Marathon 3/4 horsepower explosion-proof motor is designed for hazardous environments requiring reliable, safe operation. It is ideal for replacing or upgrading motors in industrial applications where explosion-proof certification is mandatory.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 11.0/5.4-5.5 A
• Enclosure: Explosion-Proof Fan-Cooled (EPFC)
• Frame / Diameter: NEMA Rolled Steel 56C frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This single-phase motor features a capacitor start and induction run design with automatic overload protection. It comes without a base and includes a keyed shaft for secure coupling. The motor is rated Class B insulation and is certified for explosion-proof use in Class I Groups C & D and Class II Groups F & G hazardous locations with a T3B temperature rating. Wiring diagrams are provided on the motor nameplate for ease of installation.

Warranty

1 Year Manufacturer Warranty
