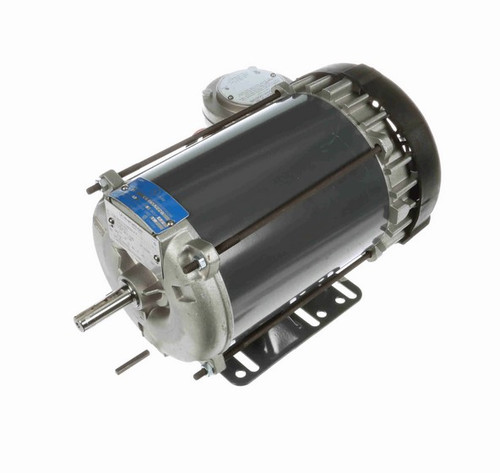

G659A Marathon 1 hp 1800 RPM 115/208-230V Explosion Proof 56H Frame EPFC (rigid base) Motor

G659A Marathon 1 hp 1800 RPM 115/208-230V Explosion Proof 56H Frame EPFC (rigid base) Motor

The G659A is a Marathon 1 horsepower, 1800 RPM explosion-proof motor designed for hazardous environments. It serves as a replacement for Leeson A6C17XB20J (110961.00) and is ideal for applications requiring a durable, single-phase motor with explosion-proof certification.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 13.8/6.8-6.7 A
• Enclosure: Explosion-Proof Fan-Cooled (EPFC)
• Frame / Diameter: NEMA Rolled Steel 56H frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for secure mounting and is designed for capacitor start/induction run operation. It includes Class B insulation and automatic overload protection. Wiring diagrams are provided on the motor nameplate for ease of installation. The motor meets explosion-proof standards for Class I Groups C & D and Class II Groups E, F, G with a T3B temperature rating.

Cross Reference

• Leeson A6C17XB20J, 110961.00

Warranty

1 Year Manufacturer Warranty
