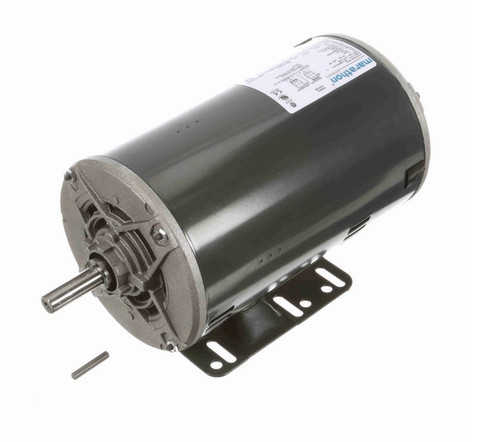

G921A Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 56H Frame ODP (rigid base) Motor

G921A Marathon 1 hp 1800 RPM 208-230/460V 3-Phase 56H Frame ODP (rigid base) Motor

This Marathon 1 horsepower, 1800 RPM, three-phase electric motor is designed for general-purpose industrial applications. It replaces the Century H882LES model and features a robust construction suitable for various machinery requiring reliable performance.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 3.2-3.0/1.5 A
• Enclosure: Open Drip-Proof (ODP)
• Frame / Diameter: NEMA Rolled Steel 56H Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base for secure mounting and includes a keyed shaft for positive drive connection. It is equipped with Class B insulation and an automatic overload protection system. Wiring diagrams are provided on the motor nameplate to assist with installation and electrical connections.

Cross Reference

• Century H882LES

Warranty

3 Year Manufacturer Warranty
