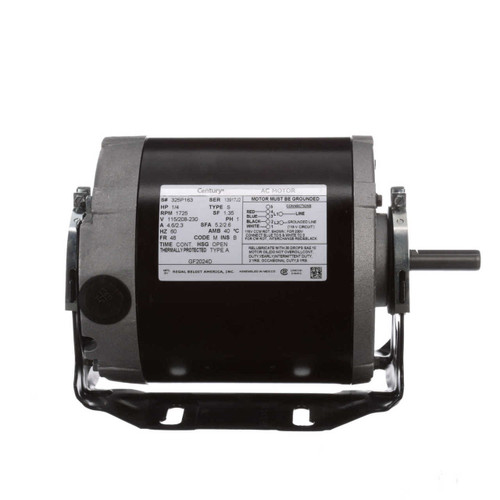

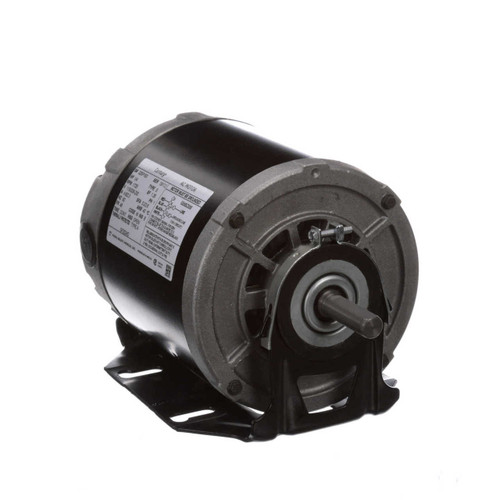

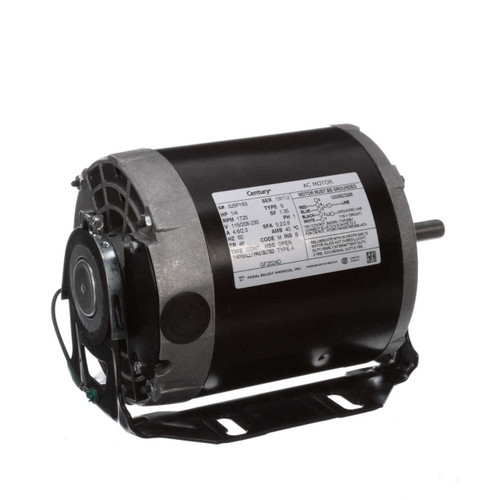

GF2024D Century 1/4 hp 1725 RPM 48 Frame 115-208/230V Belt Drive Furnace Motor Century # GF2024D

GF2024D Century 1/4 hp 1725 RPM 48 Frame 115-208/230V Belt Drive Furnace Motor

This Century GF2024D is a 1/4 horsepower belt drive furnace blower motor designed for residential HVAC applications. It is a reliable replacement option for 1/6 hp motors, providing continuous duty performance with easy rotation change capability.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1725
• Voltage: 115-208/230 V, 60 Hz
• Amperage: 4.6/2.3 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 48 Frame
• Shaft Dimensions: 1/2" diameter x 1 1/2" length, 3" shaft height
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features a resilient cradle base for stable mounting and includes a shaft adapter for 5/8" shafts. It has quick connect terminals for straightforward wiring and automatic overload protection for enhanced durability. With Class B insulation and a split phase design, this motor ensures efficient and reliable operation in residential furnace blower applications.

Warranty

1 Year Manufacturer Warranty
