Marathon

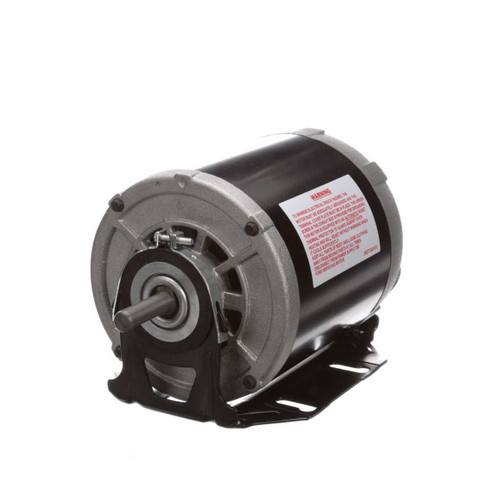

GF2034 | 1/3 hp 1725 RPM 48 Frame 115/230V Belt Drive Fan Motor
Write a Review
Marathon
GF2034 | 1/3 hp 1725 RPM 48 Frame 115/230V Belt Drive Fan Motor
GF2034 | 1/3 hp 1725 RPM 48 Frame 115/230V Belt Drive Fan Motor
The GF2034 is a versatile 1/3 horsepower belt drive blower motor designed for furnace blowers, attic fans, and whole house fans. It is a direct replacement for various Century, AO Smith, Dayton, and Marathon models, featuring updated ball bearings and dual voltage capability for reliable performance.
Key Specifications
- Horsepower: 1/3 hp
- RPM: 1725
- Voltage: 115/230V, 60 Hz
- Amperage: 6.0/3.0 amps
- Frame / Diameter: 48 Frame
- Shaft Dimensions: 1/2" diameter x 1-1/2" length, 3" shaft height
- Rotation: Reversible
- Bearings: Ball Bearings
- Enclosure: Open Drip Proof
Product Features & Fitment
This motor includes a resilient cradle base for stable mounting and comes with a shaft adapter to fit 5/8" shafts. It features automatic overload protection, continuous duty operation, quick connect terminals, and easy rotation change. Originally branded as Century and rebranded by Marathon with improvements, this split phase motor offers a service factor of 1.35 and Class B insulation for durability in HVAC applications.
Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/230V |
| Horsepower | 1/3 HP |
| RPM | 1725 |
| Frame | 48 |
| Hertz | 60 Hz |
| Type | Split Phase |
| Amperage | 6.0/3.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.35 |
| Insulation Class | Class B |
| Duty | Continuous Duty |
