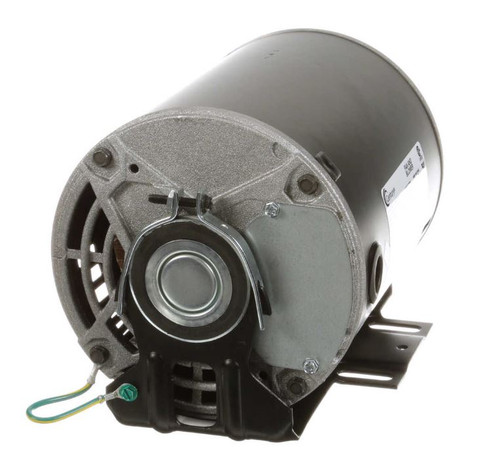

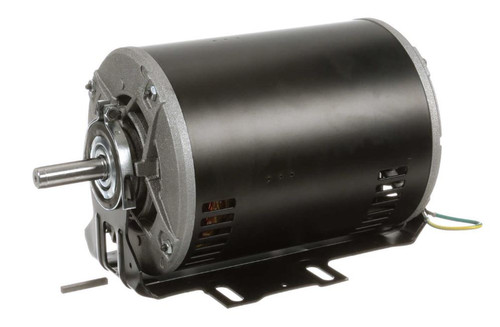

F681V1 Century 3/4 hp 1725 RPM 56 Frame 115/230V Belt Drive Blower Motor

F681V1 Century 3/4 hp 1725 RPM 56 Frame 115/230V Belt Drive Blower Motor

The F681V1 is a reliable 3/4 horsepower blower motor designed for residential HVAC applications. It replaces Century/AO Smith F681 and Dayton 48Z093 models, providing efficient belt drive operation with reversible rotation.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115/230V
• Amperage: 9.6/4.8 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 56 Frame

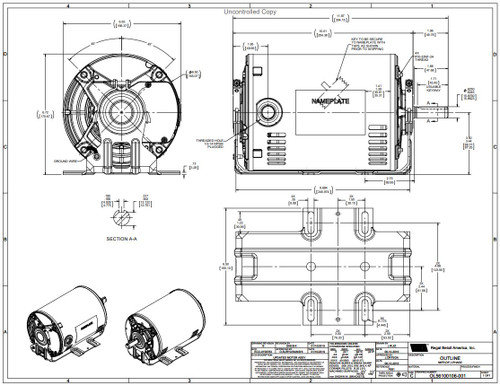

• Shaft Dimensions: 5/8" diameter x 1 7/8" length; 3.5" shaft height
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a resilient cradle base for stable mounting and quick connect terminals for easy wiring. It includes automatic overload protection and supports continuous duty operation. The design allows for straightforward rotation changes, making installation and maintenance efficient. Class B insulation ensures durability in residential environments.

Cross Reference

• Century/AO Smith F681, Dayton 48Z093

Warranty

1 Year Manufacturer Warranty
