F680V1 Century 3/4 hp 1725 RPM 56 Frame 115/230V Belt Drive Blower

F680V1 Century 3/4 hp 1725 RPM 56 Frame 115/230V Belt Drive Blower

The F680V1 is a durable 3/4 horsepower belt drive blower motor designed for residential HVAC applications. It replaces Century/AO Smith F680 and Dayton 4UE84 models, offering reliable performance with reversible rotation and continuous duty operation.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115/230V
• Amperage: 9.6/4.8 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 56 Frame

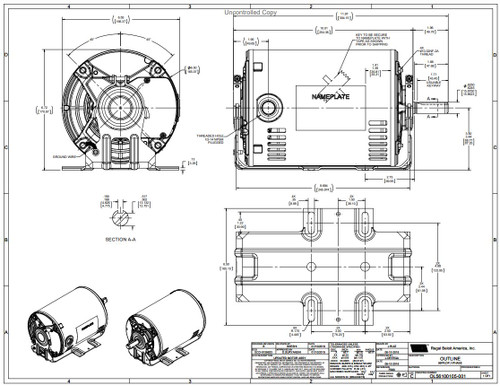

• Shaft Dimensions: 5/8" diameter x 1 7/8" length; 3.5" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient cradle base for stable mounting and quick connect terminals for easy wiring. It includes automatic overload protection and Class B insulation, ensuring safe and efficient operation. The design allows for straightforward rotation changes to accommodate various blower configurations.

Cross Reference

• Century/AO Smith F680, Dayton 4UE84

Warranty

1 Year Manufacturer Warranty
