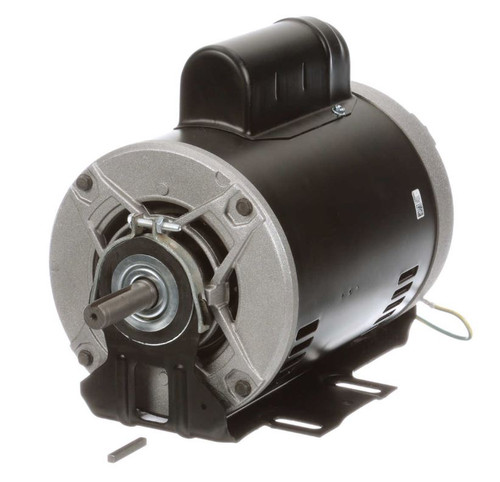

C666V1 Century 3/4 hp 1725 RPM 56 Frame 115/208-230V Belt Drive Cap Start Blower Motor

C666V1 Century 3/4 hp 1725 RPM 56 Frame 115/208-230V Belt Drive Cap Start Blower Motor

The Century C666V1 is a 3/4 horsepower, capacitor start blower motor designed for continuous duty applications. It replaces Century C666 and Dayton 48Y810 models, making it suitable for HVAC and industrial blower systems requiring reliable performance and easy rotation change.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 11.0 / 5.3-5.5 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 56 Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, 3.5" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient cradle base for stable mounting and a service factor of 1.25 for enhanced durability. It includes Class B insulation and is designed for easy rotation change without additional modifications. Note that this motor does not include overload protection.

Cross Reference

• Century C666, Dayton 48Y810

Warranty

1 Year Manufacturer Warranty
