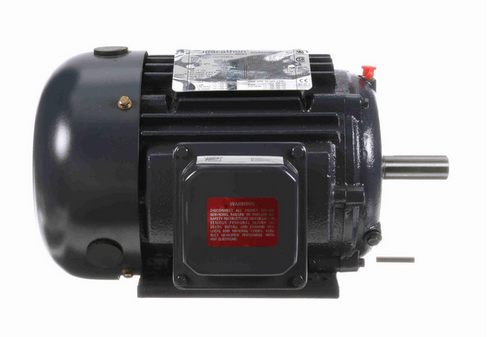

GT1004 Marathon 1-1/2 hp 1800 RPM 3-Phase 145T Frame TEFC (rigid base) 230/460V Motor # TE108
GT1004 Marathon 1-1/2 hp 1800 RPM 3-Phase 145T Frame TEFC (rigid base) 230/460V Motor # TE108
GT1004 Marathon 1-1/2 hp 1800 RPM 3-Phase 145T Frame TEFC (rigid base) 230/460V Motor # TE108
GT1004 Marathon 1-1/2 hp 1800 RPM 3-Phase 145T Frame TEFC (rigid base) 230/460V Motor # TE108

Marathon

GT1004 Marathon 1-1/2 hp 1800 RPM 3-Phase 145T Frame TEFC (rigid base) 230/460V Motor # TE108

(No reviews) Write a Review
$608.24
$531.30
SKU GT1004
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 145T
Enclosure TEFC
Hertz 60 Hz
Amperage 4.0/2.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 1/2 hp 1800 RPM, 4.0/2.0 amps 230/460 Volts 60hz. Three Phase
  • NEMA 145T Cast Iron Frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base with dual frame mounting holes, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty. Meets NEMA premium efficiencies

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 145TTFC6026

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 145T
Enclosure TEFC
Hertz 60 Hz
Amperage 4.0/2.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
