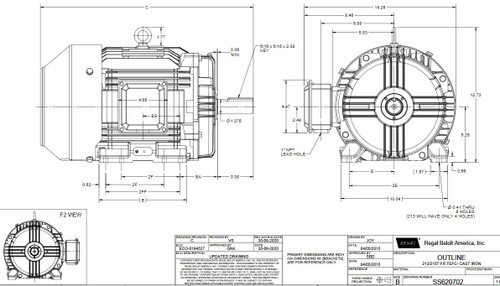

GT1116A Marathon 7 1/2 hp 575V 1800 RPM 3-Phase 213T Frame TEFC (rigid base) Motor

• 7 1/2 hp 1800 RPM, 7.6 amps 575 Volts 60hz. Three Phase
• NEMA 213T cast iron frame, Keyed Shaft 1 3/8" Diameter x 3 3/8"
• Service Factor: 1.15, Overload protection = None
• Rigid Base with dual frame mounting holes, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty. Meets NEMA premium efficiencies

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B, 213TTFCD6030
