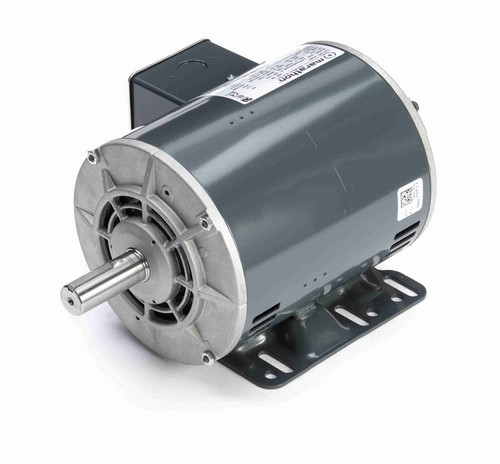

H150 Marathon 3/4 hp 1200 RPM 230/460V 3-Phase 143T Frame ODP (rigid base) Motor

SKU:
H150
Weight:
29.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $424.60
Now: $389.50
  • 3/4 hp 1200 RPM, 3.2/1.6 amps 230/460 Volts 60 Hz. Three Phase
  • NEMA Rolled Steel 143T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 3 Year Manufacture Warranty

General purpose three phase electric motor, Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip-Proof. 143TTDR5376
