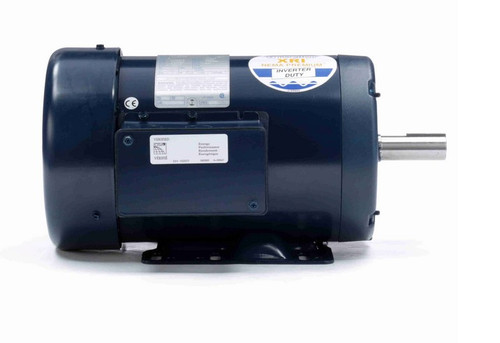

E2102 Marathon 1 hp 230/460V 1200 RPM 3-Phase 143T Frame TEFC (rigid base) Motor

E2102 Marathon 1 hp 230/460V 1200 RPM 3-Phase 143T Frame TEFC (rigid base) Motor

SKU:
E2102
Weight:
42.00 LBS
Width:
11.00 (in)
Height:
11.00 (in)
Depth:
20.00 (in)
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:
230/460V
Horsepower:
1 HP
RPM:
1200
Phase:
Three Phase
Frame:
143T
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
3.8/1.9 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class B
Mounting:
Rigid Base
Was: $747.04
Now: $655.39
Adding to cart… The item has been added
  • 1 hp 1200 RPM, 3.8/1.9 amps 230/460 Volts 60hz. Three Phase
  • NEMA rolled steel 143T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled

Marathon # 145TTFR16078
Replaces Leeson C145T11FB20B, C145T11FB20, 121520.00, G120087.00

!
