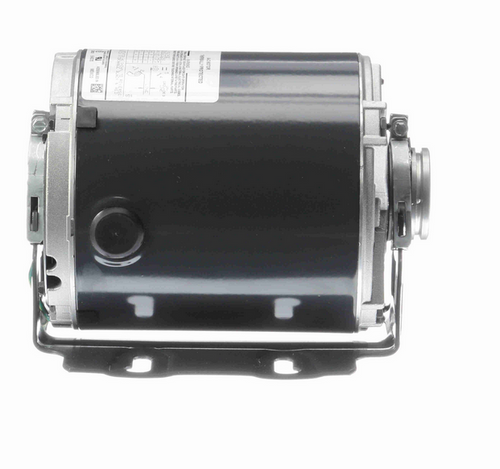

H683 Marathon 1/3 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (resilient base) Marathon

H683 Marathon 1/3 hp Carbonator Pump Motor 1800 RPM 100-120/200-240V, 48Y ODP Frame (Resilient Base)

This Marathon 1/3 horsepower carbonator pump motor is a direct replacement designed for liquid transfer pumps, vending machine pumps, and other hub-mounted pump applications. It features a split-phase design suitable for reliable and efficient operation in carbonator pump systems.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800/1500
• Voltage: 100-120/200-240 V
• Amperage: 5.6/2.8 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Y
• Shaft Dimensions: Short, slotted shaft with extended hub for direct mounting
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a resilient base for stable mounting and features a special shaft designed for close coupling with carbonator pumps. The extended hub allows for direct mounting to the pump, ensuring a secure and efficient fit. The motor is equipped with Class B insulation and automatic overload protection for enhanced durability and safety.

Warranty

1 Year Manufacturer Warranty
