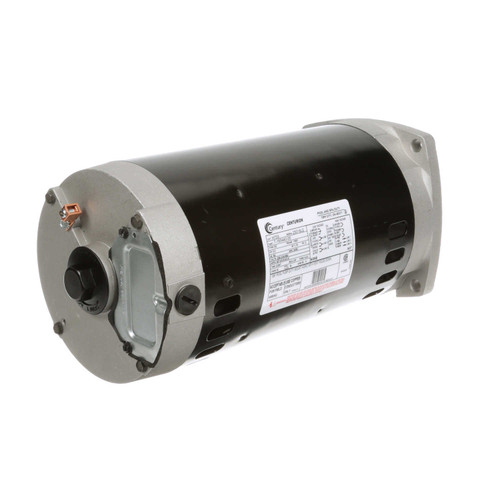

H755 Century 3 hp 3450 RPM 56Y Frame 208-230/460V Square Flange Pool Motor

H755 Century 3 hp 3450 RPM 56Y Frame 208-230/460V Square Flange Pool Motor

This Century replacement pool motor is designed for Pentair/PAC Fab pump applications, providing reliable three-phase power for efficient pool operation. It features a square flange mounting system compatible with various pump models.

Key Specifications

• Horsepower: 3 HP
• RPM: 3450
• Voltage: 208-230/460V
• Amperage: 9.6/4.8 amps
• Frame / Diameter: 56Y Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Reversible (counterclockwise facing the shaft is proper rotation)
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor includes a square flange with four non-threaded bolt holes for secure pump mounting and does not include a base. The stainless steel shaft ensures durability and corrosion resistance. Due to the reversible nature of three-phase power, it is recommended to perform a quick rotation test before installation to confirm proper counterclockwise rotation when facing the shaft.
