HD10P2H Nidec 10 hp 1800 RPM 215T Frame (Rigid Base) 200-208V TEFC 3-Phase Electric Motor

HD10P2H Nidec 10 hp 1800 RPM 215T Frame (Rigid Base) 200-208V TEFC 3-Phase Electric Motor

This Nidec HD10P2H is a 10 horsepower, 1800 RPM three-phase electric motor designed for industrial applications requiring reliable and efficient power. It is suitable for replacing or upgrading existing motors with a NEMA 215T frame and rigid base mount.

Key Specifications

• Horsepower: 10 hp
• RPM: 1800
• Voltage: 200-208 V
• Amperage: 29.0-29.3 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

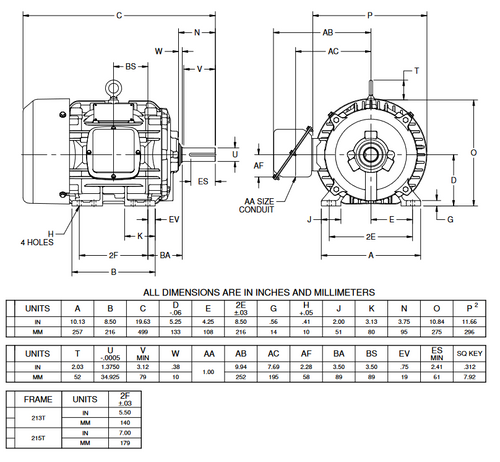

• Frame / Diameter: NEMA 215T Cast Iron Frame
• Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount and Class F insulation, making it suitable for hostile duty environments. It is inverter duty rated and self-certified for Class 1, Division 2, Groups A, B, C, D hazardous locations. The wiring diagram is provided on the motor nameplate for ease of installation.

Warranty

1 Year Manufacturer Warranty
