HD10P4E Nidec | 10 hp 900 RPM 284T Frame 230/460V TEFC Nidec Electric Motor

HD10P4E Nidec | 10 hp 900 RPM 284T Frame 230/460V TEFC Nidec Electric Motor

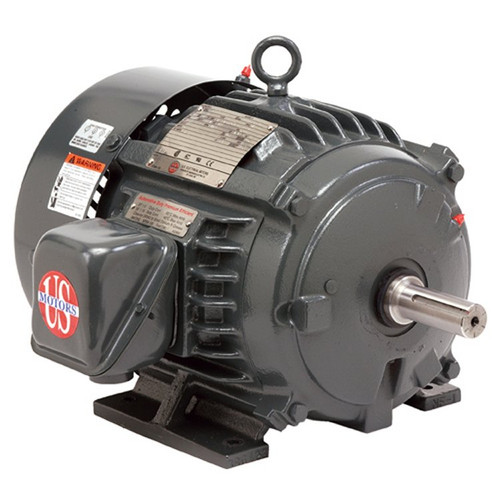

This Nidec electric motor delivers 10 horsepower at 900 RPM and is designed for industrial applications requiring reliable, continuous duty performance. It is suitable for replacing motors in equipment with a NEMA 284T frame and supports variable and constant torque loads with inverter power.

Key Specifications

• Horsepower: 10 hp
• RPM: 900
• Voltage: 230/460 V
• Amperage: 28.3/14.2 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

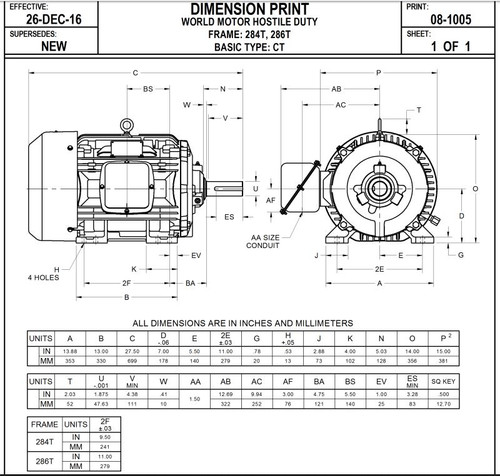

• Frame / Diameter: NEMA 284T, "C" Dimension 27.5"
• Shaft Dimensions: Keyed shaft, 1 7/8" diameter x 4 5/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with a corrosion-resistant cast iron frame and premium efficiency design. It includes a steel fan cover, conduit box, condensation drains with plastic plugs, and a stainless steel nameplate with CE marking. The motor is suitable for hostile duty environments and supports 20:1 variable torque and 5:1 constant torque on inverter power. Wiring diagrams are provided on the motor nameplate for ease of installation.

Warranty

1 Year Manufacturer Warranty
