HD25P1ES Nidec | 25 hp 3600 RPM 284TS Frame 230/460V TEFC Nidec Electric Motor

HD25P1ES Nidec | 25 hp 3600 RPM 284TS Frame 230/460V TEFC Nidec Electric Motor

This HD25P1ES Nidec electric motor is a premium efficiency, hostile duty motor designed for industrial applications requiring reliable performance and durability. It replaces standard 25 hp motors and is suitable for continuous duty in harsh environments such as mills and chemical plants.

Key Specifications

• Horsepower: 25 hp
• RPM: 3600
• Voltage: 230/460 Volts
• Amperage: 58.0/28.8 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

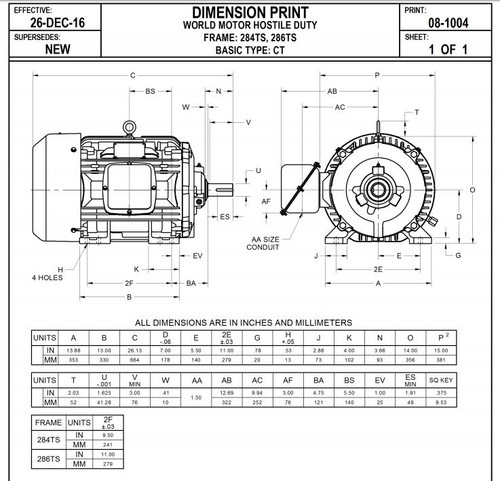

• Frame / Diameter: NEMA 284TS Frame, "C" Dimension 26.1"
• Shaft Dimensions: Keyed shaft, 1 5/8" diameter x 3 1/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a cast iron frame with corrosion-resistant mill and chemical duty paint, stainless steel nameplate with CE mark, and zinc-plated hardware for enhanced durability. It includes a steel fan cover and conduit box, condensation drains with plastic plugs, and is designed for rigid base mounting. Suitable for variable torque loads up to 20:1 and constant torque loads up to 5:1 on inverter power, it operates continuously at 40°C ambient temperature. Wiring diagrams are provided on the motor nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
