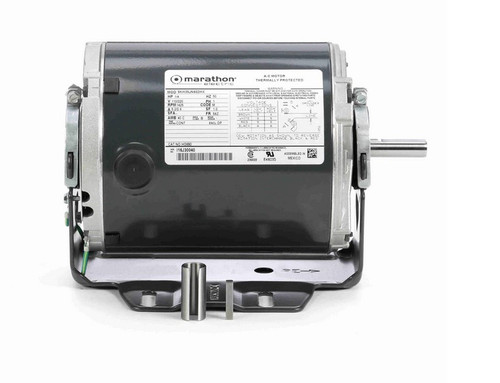

HG690 Marathon 1/4 hp (1 speed) 110/220V 50 Hz 1500 RPM ODP 56Z Frame Resilient Base Blower Motor

HG690 Marathon 1/4 hp (1 speed) 110/220V 50 Hz 1500 RPM ODP 56Z Frame Resilient Base Blower Motor

This Marathon 1/4 horsepower blower motor is designed for air circulation applications in residential and commercial buildings. It serves as a reliable replacement motor for HVAC systems requiring a single-speed, open drip proof (ODP) design.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1500
• Voltage: 110/220 V, 50 Hz
• Amperage: 5.2 / 2.6 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56Z
• Shaft Dimensions: 1 1/2" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and reduced vibration during operation. It includes thermal protection with automatic reset and is suitable for both vertical and horizontal shaft orientations. The motor’s split-phase design ensures efficient starting and reliable performance in blower applications.

Warranty

1 Year Manufacturer Warranty
